Merge branch 'line-profile' into 'main'

Line profile

See merge request !154

docs/doc/visualization/viz.md

@@ -23,6 +23,7 @@ The `qim3d` library aims to provide easy ways to explore and get insights from v
             - plot_cc
             - colormaps
             - fade_mask
+            - line_profile

 ::: qim3d.viz.colormaps
     options:

qim3d/viz/__init__.py

@@ -7,6 +7,9 @@ from ._data_exploration import (
     slicer,
     slicer_orthogonal,
     slices_grid,
+    chunks,
+    histogram,
+    line_profile
 )
 from ._detection import circles
 from ._k3d import mesh, volumetric

qim3d/viz/_data_exploration.py

@@ -4,17 +4,20 @@ Provides a collection of visualization functions.

 import math
 import warnings
-from typing import List, Optional, Union
+
+from typing import List, Optional, Union, Tuple

 import dask.array as da
 import ipywidgets as widgets
 import matplotlib
 import matplotlib.figure
 import matplotlib.pyplot as plt
+import matplotlib
+from IPython.display import SVG, display, clear_output
+import matplotlib
 import numpy as np
 import seaborn as sns
-import zarr
-from IPython.display import display
+import skimage.measure

 import qim3d
 from qim3d.utils._logger import log
@@ -1005,3 +1008,231 @@ def histogram(

     if return_fig:
         return fig
+
+class _LineProfile:
+    def __init__(self, volume, slice_axis, slice_index, vertical_position, horizontal_position, angle, fraction_range):
+        self.volume = volume
+        self.slice_axis = slice_axis
+
+        self.dims = np.array(volume.shape)
+        self.pad = 1 # Padding on pivot point to avoid border issues
+        self.cmap = [matplotlib.cm.plasma, matplotlib.cm.spring][1]
+
+        self.initialize_widgets()
+        self.update_slice_axis(slice_axis)
+        self.slice_index_widget.value = slice_index
+        self.x_widget.value = horizontal_position
+        self.y_widget.value = vertical_position
+        self.angle_widget.value = angle
+        self.line_fraction_widget.value = [fraction_range[0], fraction_range[1]]
+
+    def update_slice_axis(self, slice_axis):
+        self.slice_axis = slice_axis
+        self.slice_index_widget.max = self.volume.shape[slice_axis] - 1
+        self.slice_index_widget.value = self.volume.shape[slice_axis] // 2
+
+        self.x_max, self.y_max = np.delete(self.dims, self.slice_axis) - 1
+        self.x_widget.max = self.x_max - self.pad
+        self.x_widget.value = self.x_max // 2
+        self.y_widget.max = self.y_max - self.pad
+        self.y_widget.value = self.y_max // 2
+
+    def initialize_widgets(self):
+        layout = widgets.Layout(width='300px', height='auto')
+        self.x_widget = widgets.IntSlider(min=self.pad, step=1, description="", layout=layout)
+        self.y_widget = widgets.IntSlider(min=self.pad, step=1, description="", layout=layout)
+        self.angle_widget = widgets.IntSlider(min=0, max=360, step=1, value=0, description="", layout=layout)
+        self.line_fraction_widget = widgets.FloatRangeSlider(
+            min=0, max=1, step=0.01, value=[0, 1],
+            description="", layout=layout
+        )
+
+        self.slice_axis_widget = widgets.Dropdown(options=[0,1,2], value=self.slice_axis, description='Slice axis')
+        self.slice_axis_widget.layout.width = '250px'
+
+        self.slice_index_widget = widgets.IntSlider(min=0, step=1, description="Slice index", layout=layout)
+        self.slice_index_widget.layout.width = '400px'
+
+    def calculate_line_endpoints(self, x, y, angle):
+        """
+        Line is parameterized as: [x + t*np.cos(angle), y + t*np.sin(angle)]
+        """
+        if np.isclose(angle, 0):
+            return [0, y], [self.x_max, y]
+        elif np.isclose(angle, np.pi/2):
+            return [x, 0], [x, self.y_max]
+        elif np.isclose(angle, np.pi):
+            return [self.x_max, y], [0, y]
+        elif np.isclose(angle, 3*np.pi/2):
+            return [x, self.y_max], [x, 0]
+        elif np.isclose(angle, 2*np.pi):
+            return [0, y], [self.x_max, y]
+
+        t_left = -x / np.cos(angle)
+        t_bottom = -y / np.sin(angle)
+        t_right = (self.x_max - x) / np.cos(angle)
+        t_top = (self.y_max - y) / np.sin(angle)
+        t_values = np.array([t_left, t_top, t_right, t_bottom])
+        t_pos = np.min(t_values[t_values > 0])
+        t_neg = np.max(t_values[t_values < 0])
+
+        src = [x + t_neg * np.cos(angle), y + t_neg * np.sin(angle)]
+        dst = [x + t_pos * np.cos(angle), y + t_pos * np.sin(angle)]
+        return src, dst
+
+    def update(self, slice_axis, slice_index, x, y, angle_deg, fraction_range):
+        if slice_axis != self.slice_axis:
+            self.update_slice_axis(slice_axis)
+            x = self.x_widget.value
+            y = self.y_widget.value
+            slice_index = self.slice_index_widget.value
+
+        clear_output(wait=True)
+
+        image = np.take(self.volume, slice_index, slice_axis)
+        angle = np.radians(angle_deg)
+        src, dst = [np.array(point, dtype='float32') for point in self.calculate_line_endpoints(x, y, angle)]
+
+        # Rescale endpoints
+        line_vec = dst - src
+        dst = src + fraction_range[1] * line_vec
+        src = src + fraction_range[0] * line_vec
+
+        y_pline = skimage.measure.profile_line(image, src, dst)
+
+        fig, ax = plt.subplots(1, 2, figsize=(10, 5))
+
+        # Image with color-gradiented line
+        num_segments = 100
+        x_seg = np.linspace(src[0], dst[0], num_segments)
+        y_seg = np.linspace(src[1], dst[1], num_segments)
+        segments = np.stack([np.column_stack([y_seg[:-2], x_seg[:-2]]),
+                             np.column_stack([y_seg[2:], x_seg[2:]])], axis=1)
+        norm = plt.Normalize(vmin=0, vmax=num_segments-1)
+        colors = self.cmap(norm(np.arange(num_segments - 1)))
+        lc = matplotlib.collections.LineCollection(segments, colors=colors, linewidth=2)
+
+        ax[0].imshow(image,cmap='gray')
+        ax[0].add_collection(lc)
+        # pivot point
+        ax[0].plot(y,x,marker='s', linestyle='', color='cyan', markersize=4)
+        ax[0].set_xlabel(f'axis {np.delete(np.arange(3), self.slice_axis)[1]}')
+        ax[0].set_ylabel(f'axis {np.delete(np.arange(3), self.slice_axis)[0]}')
+
+        # Profile intensity plot
+        norm = plt.Normalize(0, vmax=len(y_pline) - 1)
+        x_pline = np.arange(len(y_pline))
+        points = np.column_stack((x_pline, y_pline))[:, np.newaxis, :]
+        segments = np.concatenate([points[:-1], points[1:]], axis=1)
+        lc = matplotlib.collections.LineCollection(segments, cmap=self.cmap, norm=norm, array=x_pline[:-1], linewidth=2)
+
+        ax[1].add_collection(lc)
+        ax[1].autoscale()
+        ax[1].set_xlabel('Distance along line')
+        ax[1].grid(True)
+        plt.tight_layout()
+        plt.show()
+
+    def build_interactive(self):
+        # Group widgets into two columns
+        title_style = "text-align:center; font-size:16px; font-weight:bold; margin-bottom:5px;"
+        title_column1 = widgets.HTML(f"<div style='{title_style}'>Line parameterization</div>")
+        title_column2 = widgets.HTML(f"<div style='{title_style}'>Slice selection</div>")
+
+        # Make label widgets instead of descriptions which have different lengths.
+        label_layout = widgets.Layout(width='120px')
+        label_x = widgets.Label("Vertical position", layout=label_layout)
+        label_y = widgets.Label("Horizontal position", layout=label_layout)
+        label_angle = widgets.Label("Angle (°)", layout=label_layout)
+        label_fraction = widgets.Label("Fraction range", layout=label_layout)
+
+        row_x = widgets.HBox([label_x, self.x_widget])
+        row_y = widgets.HBox([label_y, self.y_widget])
+        row_angle = widgets.HBox([label_angle, self.angle_widget])
+        row_fraction = widgets.HBox([label_fraction, self.line_fraction_widget])
+
+        controls_column1 = widgets.VBox([title_column1, row_x, row_y, row_angle, row_fraction])
+        controls_column2 = widgets.VBox([title_column2, self.slice_axis_widget, self.slice_index_widget])
+        controls = widgets.HBox([controls_column1, controls_column2])
+
+        interactive_plot = widgets.interactive_output(
+            self.update,
+            {'slice_axis': self.slice_axis_widget, 'slice_index': self.slice_index_widget,
+            'x': self.x_widget, 'y': self.y_widget, 'angle_deg': self.angle_widget,
+            'fraction_range': self.line_fraction_widget}
+        )
+
+        return widgets.VBox([controls, interactive_plot])
+
+def line_profile(
+        volume: np.ndarray,
+        slice_axis: int=0,
+        slice_index: int | str='middle',
+        vertical_position: int | str='middle',
+        horizontal_position: int | str='middle',
+        angle: int=0,
+        fraction_range: Tuple[float,float]=(0.00, 1.00)
+    ) -> widgets.interactive:
+    """Returns an interactive widget for visualizing the intensity profiles of lines on slices.
+
+    Args:
+        volume (np.ndarray): The 3D volume of interest.
+        slice_axis (int, optional): Specifies the initial axis along which to slice.
+        slice_index (int or str, optional): Specifies the initial slice index along slice_axis.
+        vertical_position (int or str, optional): Specifies the initial vertical position of the line's pivot point.
+        horizontal_position (int or str, optional): Specifies the initial horizontal position of the line's pivot point.
+        angle (int or float, optional): Specifies the initial angle (°) of the line around the pivot point. A float will be converted to an int. A value outside the range will be wrapped modulo.
+        fraction_range (tuple or list, optional): Specifies the fraction of the line segment to use from border to border. Both the start and the end should be in the range [0.0, 1.0].
+
+    Returns:
+        widget (widgets.widget_box.VBox): The interactive widget.
+
+
+    Example:
+        ```python
+        import qim3d
+
+        vol = qim3d.examples.bone_128x128x128
+        qim3d.viz.line_profile(vol)
+        ```

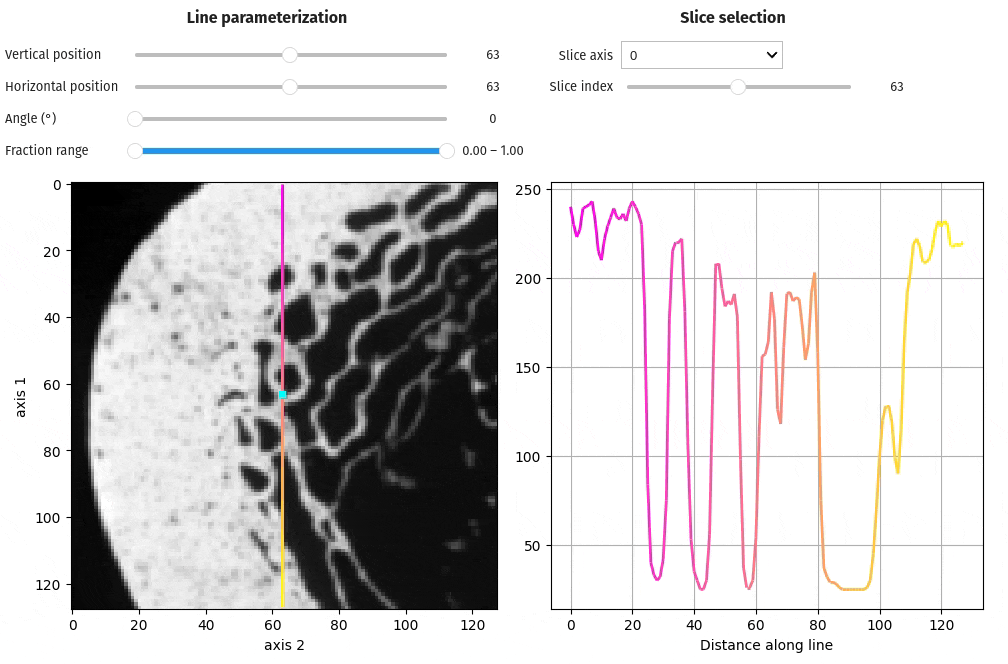

+        ![viz histogram](../../assets/screenshots/viz-line_profile.gif)
+
+    """
+    def parse_position(pos, pos_range, name):
+        if isinstance(pos, int):
+            if not pos_range[0] <= pos < pos_range[1]:
+                raise ValueError(f'Value for {name} must be inside [{pos_range[0]}, {pos_range[1]}]')
+            return pos
+        elif isinstance(pos, str):
+            pos = pos.lower()
+            if pos == 'start': return pos_range[0]
+            elif pos == 'middle': return pos_range[0] + (pos_range[1] - pos_range[0]) // 2
+            elif pos == 'end': return pos_range[1]
+            else:
+                raise ValueError(
+                    f"Invalid string '{pos}' for {name}. "
+                    "Must be 'start', 'middle', or 'end'."
+                )
+        else:
+            raise TypeError(f'Axis position must be of type int or str.')
+
+    if not isinstance(volume, (np.ndarray, da.core.Array)):
+        raise ValueError("Data type for volume not supported.")
+    if volume.ndim != 3:
+        raise ValueError("Volume must be 3D.")
+
+    dims = volume.shape
+    slice_index = parse_position(slice_index, (0, dims[slice_axis] - 1), 'slice_index')
+    # the omission of the ends for the pivot point is due to border issues.
+    vertical_position = parse_position(vertical_position, (1, np.delete(dims, slice_axis)[0] - 2), 'vertical_position')
+    horizontal_position = parse_position(horizontal_position, (1, np.delete(dims, slice_axis)[1] - 2), 'horizontal_position')
+
+    if not isinstance(angle, int | float):
+        raise ValueError("Invalid type for angle.")
+    angle = round(angle) % 360
+
+    if not (0.0 <= fraction_range[0] <= 1.0 and 0.0 <= fraction_range[1] <= 1.0 and fraction_range[0] <= fraction_range[1]):
+        raise ValueError("Invalid values for fraction_range.")
+
+    lp = _LineProfile(volume, slice_axis, slice_index, vertical_position, horizontal_position, angle, fraction_range)
+    return lp.build_interactive()
