Fade viz

docs/notebooks/Untitled.ipynb

+{
+ "cells": [
+  {
+   "cell_type": "code",
+   "execution_count": 1,
+   "id": "0b73f2d8",
+   "metadata": {},
+   "outputs": [],
+   "source": [
+    "import qim3d"
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": 2,
+   "id": "73db6886",
+   "metadata": {},
+   "outputs": [],
+   "source": [
+    "vol = qim3d.examples.bone_128x128x128"
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": 8,
+   "id": "22d86d4d",
+   "metadata": {},
+   "outputs": [
+    {
+     "data": {
+      "application/vnd.jupyter.widget-view+json": {
+       "model_id": "2fefeafbd89c4f9fa5a08dc1a5d503d1",
+       "version_major": 2,
+       "version_minor": 0
+      },
+      "text/plain": [
+       "HBox(children=(interactive(children=(IntSlider(value=64, description='Z', max=127), Output()), layout=Layout(a…"
+      ]
+     },
+     "execution_count": 8,
+     "metadata": {},
+     "output_type": "execute_result"
+    }
+   ],
+   "source": [
+    "qim3d.viz.orthogonal(vol)"
+   ]
+  }
+ ],
+ "metadata": {
+  "kernelspec": {
+   "display_name": "Python 3 (ipykernel)",
+   "language": "python",
+   "name": "python3"
+  },
+  "language_info": {
+   "codemirror_mode": {
+    "name": "ipython",
+    "version": 3
+   },
+   "file_extension": ".py",
+   "mimetype": "text/x-python",
+   "name": "python",
+   "nbconvert_exporter": "python",
+   "pygments_lexer": "ipython3",
+   "version": "3.11.5"
+  }
+ },
+ "nbformat": 4,
+ "nbformat_minor": 5
+}

docs/processing.md

@@ -16,3 +16,4 @@ Here, we provide functionalities designed specifically for 3D image analysis and
         members:
             - remove_background
             - watershed
+            - edge_fade

docs/viz.md

@@ -12,6 +12,7 @@ The `qim3d` library aims to provide easy ways to explore and get insights from v
             - vectors
             - plot_cc
             - colormaps
+            - interactive_edge_fade

 ::: qim3d.viz.colormaps
     options:

qim3d/__init__.py

@@ -2,12 +2,14 @@ import logging

 logging.basicConfig(level=logging.ERROR)

-from qim3d import io
-from qim3d import gui
-from qim3d import viz
-from qim3d import utils
-from qim3d import models
-from qim3d import processing
+from . import io
+from . import gui
+from . import viz
+
+from . import utils
+from . import models
+from . import processing
+

 __version__ = "0.3.2"
 examples = io.ImgExamples()

qim3d/processing/local_thickness_.py

@@ -5,8 +5,8 @@ import numpy as np
 from typing import Optional
 from skimage.filters import threshold_otsu
 from qim3d.io.logger import log
-from qim3d.viz import local_thickness as viz_local_thickness
-
+#from qim3d.viz import local_thickness as viz_local_thickness
+import qim3d

 def local_thickness(
     image: np.ndarray,
@@ -96,6 +96,6 @@ def local_thickness(

     # Visualize the local thickness if requested
     if visualize:
-        display(viz_local_thickness(image, local_thickness, **viz_kwargs))
+        display(qim3d.viz.local_thickness(image, local_thickness, **viz_kwargs))

     return local_thickness

qim3d/processing/operations.py

 import numpy as np
-import qim3d.processing.filters as filters
 import scipy
 import skimage
+
+import qim3d.processing.filters as filters
 from qim3d.io.logger import log


@@ -105,4 +106,82 @@ def watershed(
     num_labels = len(np.unique(labeled_volume))-1
     log.info(f"Total number of objects found: {num_labels}")

-    return labeled_volume, num_labels
\ No newline at end of file
+    return labeled_volume, num_labels
+
+def fade_mask(
+    vol: np.ndarray,
+    decay_rate: float = 10,
+    ratio: float = 0.5,
+    geometry: str = "sphere",
+    invert=False,
+    axis: int = 0,
+    ):
+    """
+    Apply edge fading to a volume.
+
+    Args:
+        vol (np.ndarray): The volume to apply edge fading to.
+        decay_rate (float, optional): The decay rate of the fading. Defaults to 10.
+        ratio (float, optional): The ratio of the volume to fade. Defaults to 0.
+        geometric (str, optional): The geometric shape of the fading. Can be 'spherical' or 'cylindrical'. Defaults to 'spherical'.
+        axis (int, optional): The axis along which to apply the fading. Defaults to 0.
+
+    Returns:
+        np.ndarray: The volume with edge fading applied.
+
+    Example:
+        ```python
+        import qim3d
+        qim3d.viz.vol(vol)
+        ```

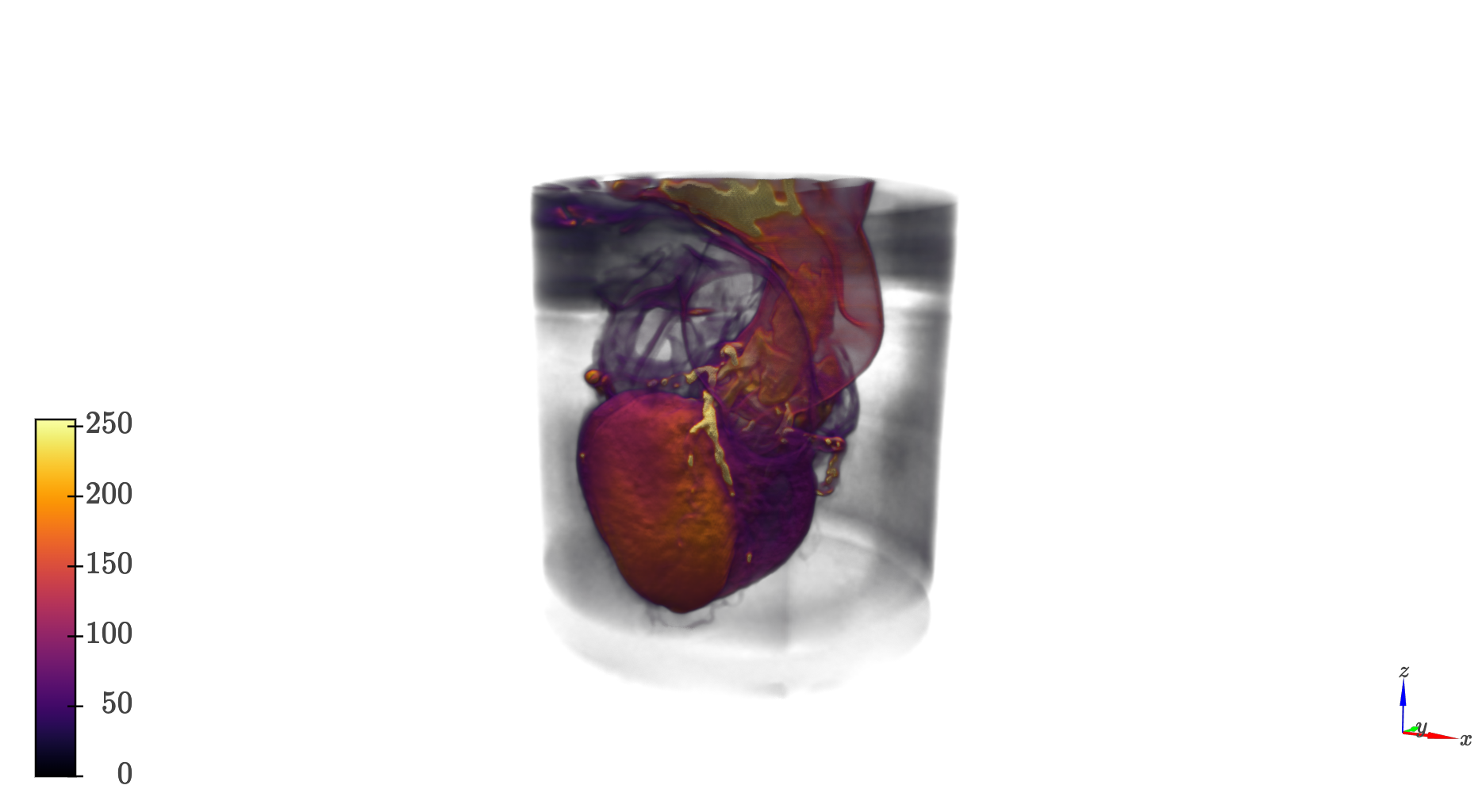

+        Image before edge fading has visible artifacts from the support. Which obscures the object of interest.
+        ![operations-edge_fade_before](assets/screenshots/operations-edge_fade_before.png)
+
+        ```python
+        import qim3d
+        vol_faded = qim3d.processing.operations.edge_fade(vol, decay_rate=4, ratio=0.45, geometric='cylindrical')
+        qim3d.viz.vol(vol_faded)
+        ```

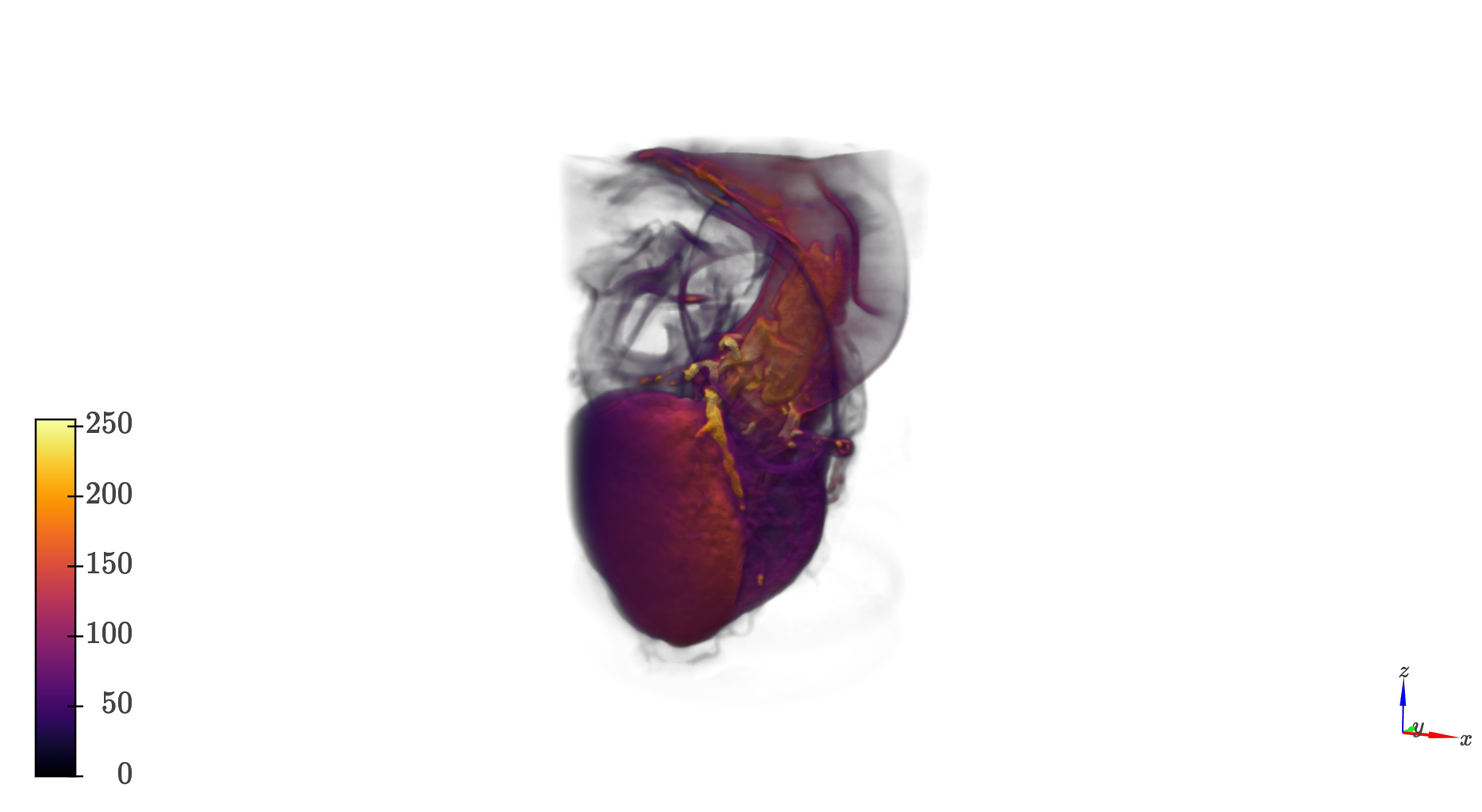

+        Afterwards the artifacts are faded out, making the object of interest more visible for visualization purposes.
+        ![operations-edge_fade_after](assets/screenshots/operations-edge_fade_after.png)
+
+    """
+    if 0 > axis or axis >= vol.ndim:
+        raise ValueError("Axis must be between 0 and the number of dimensions of the volume")
+
+    # Generate the coordinates of each point in the array
+    shape = vol.shape
+    z, y, x = np.indices(shape)
+
+    # Calculate the center of the array
+    center = np.array([(s - 1) / 2 for s in shape])
+
+    # Calculate the distance of each point from the center
+    if geometry == "sphere":
+        distance = np.linalg.norm([z - center[0], y - center[1], x - center[2]], axis=0)
+    elif geometry == "cilinder":
+        distance_list = np.array([z - center[0], y - center[1], x - center[2]])
+        # remove the axis along which the fading is not applied
+        distance_list = np.delete(distance_list, axis, axis=0)
+        distance = np.linalg.norm(distance_list, axis=0)
+    else:
+        raise ValueError("geometric must be 'spherical' or 'cylindrical'")
+
+    # Normalize the distances so that they go from 0 at the center to 1 at the farthest point
+    max_distance = np.linalg.norm(center)
+    normalized_distance = distance / (max_distance*ratio)
+
+    # Apply the decay rate
+    faded_distance = normalized_distance ** decay_rate
+
+    # Invert the distances to have 1 at the center and 0 at the edges
+    fade_array = 1 - faded_distance
+    fade_array[fade_array<=0]=0
+
+    if invert:
+        fade_array = -(fade_array-1)
+
+    # Apply the fading to the volume
+    vol_faded = vol * fade_array
+
+    return vol_faded

qim3d/viz/__init__.py

-from .visualizations import plot_metrics
-from .img import grid_pred, grid_overview, slices, slicer, orthogonal, vol_masked
-from .k3d import vol
-from .structure_tensor import vectors
-from .local_thickness_ import local_thickness
-from .cc import plot_cc
 #from .colormaps import objects
 from . import colormaps
-
+from .cc import plot_cc
 from .detection import circles
+from .img import (
+    grid_overview,
+    grid_pred,
+    interactive_fade_mask,
+    orthogonal,
+    slicer,
+    slices,
+    vol_masked,
+)
+from .k3d import vol
+from .local_thickness_ import local_thickness
+from .structure_tensor import vectors
+from .visualizations import plot_metrics

qim3d/viz/cc.py

@@ -3,9 +3,8 @@ import numpy as np

 from qim3d.io.logger import log
 from qim3d.processing.cc import CC
-from qim3d.viz import slices
 from qim3d.viz.colormaps import objects as qim3dCmap
-
+import qim3d

 def plot_cc(
     connected_components,
@@ -66,18 +65,18 @@ def plot_cc(
                 overlay_crop = overlay[bb]
                 # use cc as mask for overlay_crop, where all values in cc set to 0 should be masked out, cc contains integers
                 overlay_crop = np.where(cc == 0, 0, overlay_crop)
-                fig = slices(overlay_crop, show=show, **kwargs)
+                fig = qim3d.viz.slices(overlay_crop, show=show, **kwargs)
             else:
                 cc = connected_components.get_cc(component, crop=False)
                 overlay_crop = np.where(cc == 0, 0, overlay)
-                fig = slices(overlay_crop, show=show, **kwargs)
+                fig = qim3d.viz.slices(overlay_crop, show=show, **kwargs)
         else:
             # assigns discrete color map to each connected component if not given
             if "cmap" not in kwargs:
                 kwargs["cmap"] = qim3dCmap(len(component_indexs))

             # Plot the connected component without overlay
-            fig = slices(connected_components.get_cc(component, crop=crop), show=show, **kwargs)
+            fig = qim3d.viz.slices(connected_components.get_cc(component, crop=crop), show=show, **kwargs)

         figs.append(fig)


qim3d/viz/detection.py

 import matplotlib.pyplot as plt
-from qim3d.viz import slices
 from qim3d.io.logger import log
 import numpy as np
 import ipywidgets as widgets
 from IPython.display import clear_output, display
-
+import qim3d

 def circles(blobs, vol, alpha=0.5, color="#ff9900", **kwargs):
     """
@@ -29,7 +28,7 @@ def circles(blobs, vol, alpha=0.5, color="#ff9900", **kwargs):

     def _slicer(z_slice):
         clear_output(wait=True)
-        fig = slices(
+        fig = qim3d.viz.slices(
             vol,
             n_slices=1,
             position=z_slice,

qim3d/viz/img.py

@@ -5,14 +5,15 @@ Provides a collection of visualization functions.
 import math
 from typing import List, Optional, Union

+import dask.array as da
 import ipywidgets as widgets
 import matplotlib.pyplot as plt
 import numpy as np
 import torch
 from matplotlib import colormaps
 from matplotlib.colors import LinearSegmentedColormap
-import dask.array as da

+import qim3d
 from qim3d.io.logger import log


@@ -557,3 +558,83 @@ def vol_masked(vol, vol_mask, viz_delta=128):
     vol_masked = background + foreground

     return vol_masked
+

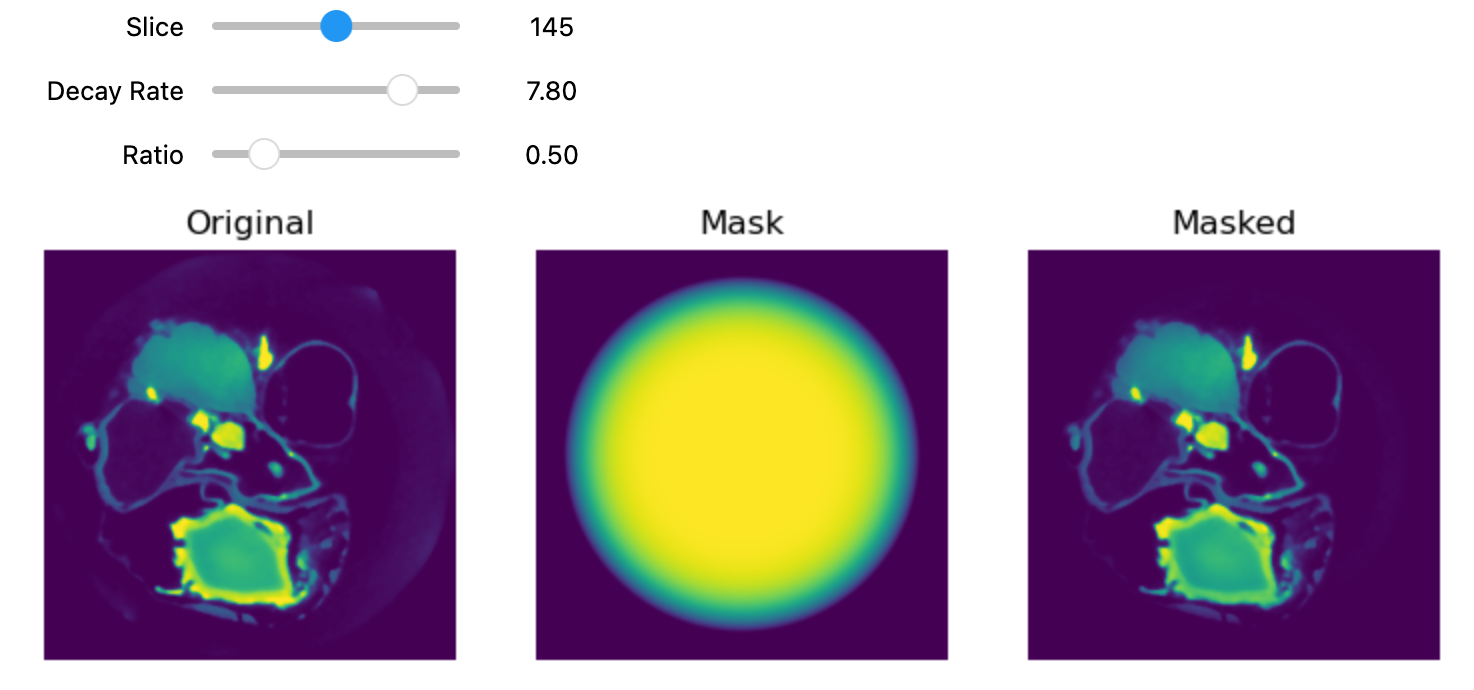

+def interactive_fade_mask(vol: np.ndarray, axis: int = 0):
+    """ Interactive widget for visualizing the effect of edge fading on a 3D volume.
+
+    Args:
+        vol (np.ndarray): The volume to apply edge fading to.
+        axis (int, optional): The axis along which to apply the fading. Defaults to 0.
+
+    Returns:
+        np.ndarray: The volume with edge fading applied.
+
+    Example:
+        ```python
+        import qim3d
+        qim3d.viz.img.interactive_edge_fade(vol, geometric='cylindrical', axis=0)
+        ```
+        ![operations-edge_fade_before](assets/screenshots/interactive_edge_fading.png)
+
+    """
+
+    # Create the interactive widget
+    def _slicer(position, decay_rate, ratio, geometry, invert):
+        fig, axes = plt.subplots(1, 3, figsize=(9, 3))
+
+        axes[0].imshow(vol[position, :, :], cmap='viridis')
+        axes[0].set_title('Original')
+        axes[0].axis('off')
+
+        mask = qim3d.processing.operations.fade_mask(np.ones_like(vol), decay_rate=decay_rate, ratio=ratio, geometry=geometry, axis=axis, invert=invert)
+        axes[1].imshow(mask[position, :, :], cmap='viridis')
+        axes[1].set_title('Mask')
+        axes[1].axis('off')
+
+        masked_vol = qim3d.processing.operations.fade_mask(vol, decay_rate=decay_rate, ratio=ratio,  geometry=geometry, axis=axis, invert=invert)
+        axes[2].imshow(masked_vol[position, :, :], cmap='viridis')
+        axes[2].set_title('Masked')
+        axes[2].axis('off')
+
+        return fig
+
+    shape_dropdown = widgets.Dropdown(
+        options=['sphere', 'cilinder'],
+        value='sphere',  # default value
+        description='Geometry',
+    )
+
+    position_slider = widgets.IntSlider(
+        value=vol.shape[0] // 2,
+        min=0,
+        max=vol.shape[0] - 1,
+        description="Slice",
+        continuous_update=False,
+    )
+    decay_rate_slider = widgets.FloatSlider(
+        value=10,
+        min=1,
+        max=50,
+        step=1.0,
+        description="Decay Rate",
+        continuous_update=False,
+    )
+    ratio_slider = widgets.FloatSlider(
+        value=0.5,
+        min=0.1,
+        max=1,
+        step=0.01,
+        description="Ratio",
+        continuous_update=False,
+    )
+
+    # Create the Checkbox widget
+    invert_checkbox = widgets.Checkbox(
+        value=False,  # default value
+        description='Invert'
+    )
+
+    slicer_obj = widgets.interactive(_slicer, position=position_slider, decay_rate=decay_rate_slider, ratio=ratio_slider, geometry=shape_dropdown, invert=invert_checkbox)
+    slicer_obj.layout = widgets.Layout(align_items="flex-start")
+
+    return slicer_obj
