docs/io.md

@@ -3,32 +3,10 @@ Dealing with volumetric data can be done by `qim3d` for the most common image fo

 Currently, it is possible to directly load `tiff`, `h5`, `nii`,`txm`, `vol` and common `PIL` formats using one single function.

-
-!!! Example
-    ```python
-    import qim3d
-
-    # Get some data from examples
-    vol = qim3d.examples.blobs_256x256x256
-
-    # Save in a local file
-    qim3d.io.save("blobs.tif", vol)
-
-    # Load data from file
-    loaded_vol = qim3d.io.load("blobs.tif")
-    ```
-
-::: qim3d.io.load
+::: qim3d.io
     options:
         members:
             - load
-
-::: qim3d.io.save
-    options:
-        members:
             - save
-
-::: qim3d.io.downloader
-    options:
-        members:
             - Downloader
+            - ImgExamples
\ No newline at end of file

docs/processing.md

 # Processing data

-::: qim3d.processing.filters
-    options:
-        members:
-            -
-
+`qim3d` provides various tools for 3D image processing. Here, we provide a suite of powerful functionalities designed specifically for 3D image analysis and processing. From filter pipelines to structure tensor computation and blob detection, `qim3d` equips you with the tools you need to extract meaningful insights from your data.

-::: qim3d.processing.filters.Pipeline
+::: qim3d.processing
     options:
         members:
-            - append
-
-
-
-::: qim3d.processing.structure_tensor
\ No newline at end of file
+            - structure_tensor
+            - local_thickness
+            - get_3d_cc
+            - Pipeline
+            - Blob
\ No newline at end of file

docs/releases.md

@@ -12,6 +12,12 @@ And remember to keep your pip installation [up to date](/qim3d/#upgrade) so that
 ### v0.3.3 (coming soon!)
 - Introduction of `qim3d.viz.slicer` (and also `qim3d.viz.orthogonal` ) 🎉
 - Introduction of `qim3d.gui.annotation_tool` 🎉

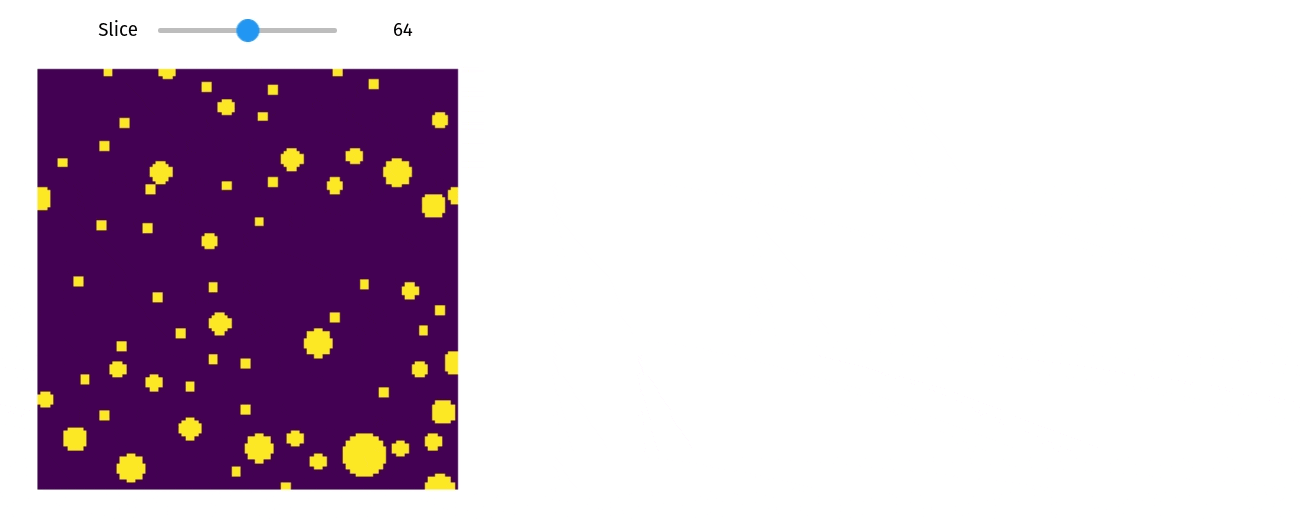

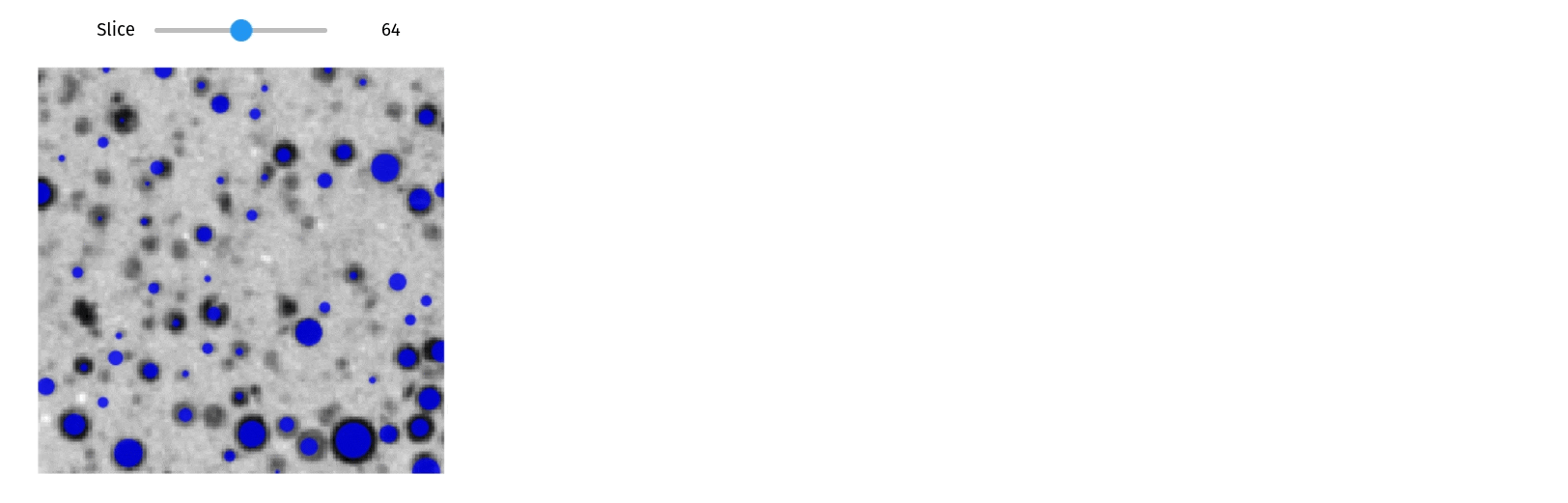

+- Introduction of `qim3d.processing.Blob` for blob detection 🎉
+- Introduction of `qim3d.processing.local_thickness` 🎉

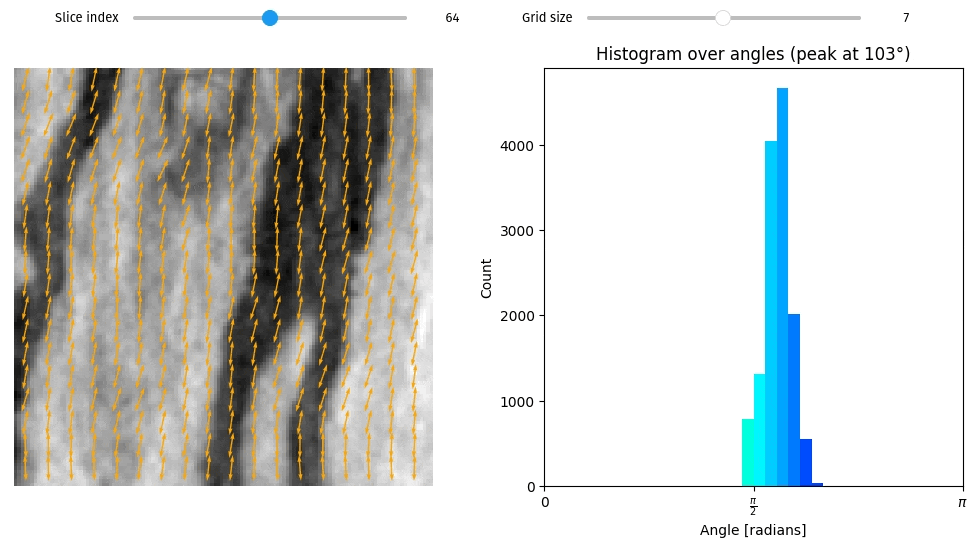

+- Introduction of `qim3d.processing.structure_tensor` 🎉
+- Support for loading DICOM files with `qim3d.io.load`🎉
+- Introduction of `qim3d.processing.get_3d_cc` for 3D connected components and `qim3d.viz.plot_cc` for associated visualization 🎉
+- Introduction of `qim3d.viz.colormaps` for easy visualization of e.g. multi-label segmentation results 🎉

 ### v0.3.2 (23/02/2024)

@@ -20,9 +26,9 @@ This version focus on the increased usability of the `qim3d` library
 - Online documentation available at [https://platform.qim.dk/qim3d](https://platform.qim.dk/qim3d)
 - Virtual stacks also available for `txm` files
 - Updated GUI launch pipeline
-- New functionalities for `qim3d.vix.slices`
+- New functionalities for `qim3d.viz.slices`
 - Introduction of `qim3d.processing.filters` 🎉
-- Introduction of `qim3d.viz.k3d` 🎉
+- Introduction of `qim3d.viz.vol` 🎉

 ### v0.3.1 (01/02/2024)


docs/viz.md

 # Data visualization
-The `qim3d`libray aims to provide easy ways to explore and get insights from volumetric data.
+The `qim3d` library aims to provide easy ways to explore and get insights from volumetric data.

-!!! Example
-    ```python
-    import qim3d
-
-    img = qim3d.examples.shell_225x128x128
-    qim3d.viz.slices(img, n_slices=15)
-    ```
-
-    ![Grid of slices](assets/screenshots/viz-slices.png)
-
-
-!!! Example
-    ```python
-    import qim3d
-
-    vol = qim3d.examples.bone_128x128x128
-    qim3d.viz.slicer(vol)
-    ```
-    ![viz slicer](assets/screenshots/viz-slicer.gif)
-
-
-!!! Example
-    ```python
-    import qim3d
-
-    vol = qim3d.examples.fly_150x256x256
-    qim3d.viz.orthogonal(vol, cmap="magma")
-    ```
-    ![viz orthogonal](assets/screenshots/viz-orthogonal.gif)
-
-
-!!! Example
-    ```python
-    import qim3d
-
-    vol = qim3d.examples.bone_128x128x128
-    qim3d.viz.vol(vol)
-    ```
-
-    <iframe src="https://platform.qim.dk/k3d/fima-bone_128x128x128-20240221113459.html" width="100%" height="500" frameborder="0"></iframe>
-::: qim3d.viz.img
+::: qim3d.viz
     options:
         members:
             - slices
             - slicer
             - orthogonal
-
-::: qim3d.viz.k3d
-    options:
-        members:
             - vol
+            - local_thickness
+            - vectors
+            - plot_cc
+            - objects

qim3d/io/__init__.py

+from .loading import DataLoader, load, ImgExamples
 from .downloader import Downloader
-from .load import DataLoader, load, ImgExamples
-from .save import DataSaver, save
+from .saving import DataSaver, save
 from .sync import Sync
 from . import logger
\ No newline at end of file

qim3d/io/downloader.py

@@ -7,16 +7,16 @@ from urllib.parse import quote
 from tqdm import tqdm
 from pathlib import Path

-from qim3d.io.load import load
+from qim3d.io import load
 from qim3d.io.logger import log
 import outputformat as ouf


 class Downloader:
-    """Class for downloading large data files available on the [QIM data repository](https://data.qim.dk/data-repository/).
+    """Class for downloading large data files available on the [QIM data repository](https://data.qim.dk/).

     Attributes:
-        [folder_name] (str): folder class with the name of the folder in https://data.qim.dk/data-repository/
+        [folder_name] (str): folder class with the name of the folder in <https://data.qim.dk/>

     Example:
         ```python

qim3d/io/load.py → qim3d/io/loading.py

@@ -12,16 +12,16 @@ Example:

 import difflib
 import os
+import re
+import struct
 from pathlib import Path

+import dask.array as da
 import h5py
 import nibabel as nib
 import numpy as np
 import olefile
-import struct
-import re
-import dask.array as da
-from pathlib import Path
+import pydicom
 import tifffile
 from PIL import Image, UnidentifiedImageError

@@ -30,6 +30,7 @@ from qim3d.io.logger import log
 from qim3d.utils.internal_tools import sizeof, stringify_path
 from qim3d.utils.system import Memory

+
 class DataLoader:
     """Utility class for loading data from different file formats.

@@ -438,6 +439,39 @@ class DataLoader:
         else:
             return vol

+    def load_dicom(self, path):
+        """ Load a DICOM file
+
+        Args:
+            path (str): Path to file
+        """
+        dcm_data = pydicom.dcmread(path)
+
+        if self.return_metadata:
+            return dcm_data.pixel_array, dcm_data
+        else:
+            return dcm_data.pixel_array
+
+    def load_dicom_dir(self, path):
+        """ Load a directory of DICOM files into a numpy 3d array
+
+        Args:
+            path (str): Directory path
+        """
+        # loop over all .dcm files in the directory
+        files = [f for f in os.listdir(path) if f.endswith('.dcm')]
+        files.sort()
+        # dicom_list contains the dicom objects with metadata
+        dicom_list = [pydicom.dcmread(os.path.join(path, f)) for f in files]
+        # vol contains the pixel data
+        vol = np.stack([dicom.pixel_array for dicom in dicom_list], axis=0)
+
+        if self.return_metadata:
+            return vol, dicom_list
+        else:
+            return vol
+
+
     def load(self, path):
         """
         Load a file or directory based on the given path.
@@ -446,9 +480,11 @@ class DataLoader:
             path (str or os.PathLike): The path to the file or directory.

         Returns:
-            numpy.ndarray, numpy.memmap, h5py._hl.dataset.Dataset, nibabel.arrayproxy.ArrayProxy or tuple: The loaded volume.
-                If 'self.virtual_stack' is True, returns numpy.memmap, h5py._hl.dataset.Dataset or nibabel.arrayproxy.ArrayProxy depending on file format
-                If 'self.return_metadata' is True and file format is either HDF5, NIfTI or TXRM/TXM/XRM, returns a tuple (volume, metadata).
+            vol (numpy.ndarray, numpy.memmap, h5py._hl.dataset.Dataset, nibabel.arrayproxy.ArrayProxy or tuple): The loaded volume
+
+                If `virtual_stack=True`, returns `numpy.memmap`, `h5py._hl.dataset.Dataset` or `nibabel.arrayproxy.ArrayProxy` depending on file format
+                If `return_metadata=True` and file format is either HDF5, NIfTI or TXRM/TXM/XRM, returns `tuple` (volume, metadata).
+
         Raises:
             ValueError: If the format is not supported
             ValueError: If the file or directory does not exist.
@@ -474,6 +510,8 @@ class DataLoader:
                 return self.load_nifti(path)
             elif path.endswith((".vol",".vgi")):
                 return self.load_vol(path)
+            elif path.endswith((".dcm",".DCM")):
+                return self.load_dicom(path)
             else:
                 try:
                     return self.load_pil(path)
@@ -482,6 +520,10 @@ class DataLoader:

         # Load a directory
         elif os.path.isdir(path):
+            # load dicom if directory contains dicom files else load tiff stack as default
+            if any([f.endswith('.dcm') for f in os.listdir(path)]):
+                return self.load_dicom_dir(path)
+            else:
                 return self.load_tiff_stack(path)

         # Fails
@@ -545,11 +587,10 @@ def load(
         to the DataLoader constructor.

     Returns:
-        numpy.ndarray, numpy.memmap, h5py._hl.dataset.Dataset, nibabel.arrayproxy.ArrayProxy or tuple: The loaded volume.
-
-        If 'virtual_stack' is True, returns numpy.memmap, h5py._hl.dataset.Dataset or nibabel.arrayproxy.ArrayProxy depending on file format
+        vol (numpy.ndarray, numpy.memmap, h5py._hl.dataset.Dataset, nibabel.arrayproxy.ArrayProxy or tuple): The loaded volume

-        If 'return_metadata' is True and file format is either HDF5, NIfTI or TXRM/TXM/XRM, returns a tuple (volume, metadata).
+            If `virtual_stack=True`, returns `numpy.memmap`, `h5py._hl.dataset.Dataset` or `nibabel.arrayproxy.ArrayProxy` depending on file format
+            If `return_metadata=True` and file format is either HDF5, NIfTI or TXRM/TXM/XRM, returns `tuple` (volume, metadata).

     Example:
         ```python
@@ -595,7 +636,30 @@ def load(


 class ImgExamples:
-    """Image examples"""
+    """Image examples
+
+    Attributes:
+        blobs_256x256 (numpy.ndarray): A 2D image of blobs.
+        blobs_256x256x256 (numpy.ndarray): A 3D volume of blobs.
+        bone_128x128x128 (numpy.ndarray): A 3D volume of bone.
+        cement_128x128x128 (numpy.ndarray): A 3D volume of cement.
+        fly_150x256x256 (numpy.ndarray): A 3D volume of a fly.
+        NT_10x200x100 (numpy.ndarray): A 3D volume of a neuron.
+        NT_128x128x128 (numpy.ndarray): A 3D volume of a neuron.
+        shell_225x128x128 (numpy.ndarray): A 3D volume of a shell.
+
+    Tip:
+        Call `qim3d.examples.<name>` to access the image examples easily as this class is instantiated when importing `qim3d`
+
+    Example:
+        ```python
+        import qim3d
+
+        data = qim3d.examples.blobs_256x256
+        ```
+
+
+    """

     def __init__(self):
         img_examples_path = Path(qim3d.__file__).parents[0] / "img_examples"
@@ -607,4 +671,4 @@ class ImgExamples:

         # Generate loader for each image found
         for idx, name in enumerate(img_names):
-            exec(f"self.{name} = qim3d.io.load(path = img_paths[idx])")
\ No newline at end of file
+            exec(f"self.{name} = load(path = img_paths[idx])")
\ No newline at end of file

qim3d/io/save.py → qim3d/io/saving.py

@@ -21,13 +21,17 @@ Example:
     ```

 """
+import datetime
 import os

 import h5py
 import nibabel as nib
 import numpy as np
 import PIL
+import pydicom
 import tifffile
+from pydicom.dataset import FileDataset, FileMetaDataset
+from pydicom.uid import UID

 from qim3d.io.logger import log
 from qim3d.utils.internal_tools import sizeof, stringify_path
@@ -179,6 +183,59 @@ class DataSaver:
         with h5py.File(path, "w") as f:
             f.create_dataset("dataset", data=data, compression="gzip" if self.compression else None)

+    def save_dicom(self, path, data):
+        """ Save data to a DICOM file to the given path.
+
+        Args:
+            path (str): The path to save file to
+            data (numpy.ndarray): The data to be saved
+        """
+        # based on https://pydicom.github.io/pydicom/stable/auto_examples/input_output/plot_write_dicom.html
+
+        # Populate required values for file meta information
+        file_meta = FileMetaDataset()
+        file_meta.MediaStorageSOPClassUID = UID('1.2.840.10008.5.1.4.1.1.2')
+        file_meta.MediaStorageSOPInstanceUID = UID("1.2.3")
+        file_meta.ImplementationClassUID = UID("1.2.3.4")
+
+        # Create the FileDataset instance (initially no data elements, but file_meta
+        # supplied)
+        ds = FileDataset(path, {},
+                        file_meta=file_meta, preamble=b"\0" * 128)
+
+        ds.PatientName = "Test^Firstname"
+        ds.PatientID = "123456"
+        ds.StudyInstanceUID = "1.2.3.4.5"
+        ds.SamplesPerPixel = 1
+        ds.PixelRepresentation = 0
+        ds.BitsStored = 16
+        ds.BitsAllocated = 16
+        ds.PhotometricInterpretation = "MONOCHROME2"
+        ds.Rows = data.shape[1]
+        ds.Columns = data.shape[2]
+        ds.NumberOfFrames = data.shape[0]
+        # Set the transfer syntax
+        ds.is_little_endian = True
+        ds.is_implicit_VR = True
+
+        # Set creation date/time
+        dt = datetime.datetime.now()
+        ds.ContentDate = dt.strftime('%Y%m%d')
+        timeStr = dt.strftime('%H%M%S.%f')  # long format with micro seconds
+        ds.ContentTime = timeStr
+        # Needs to be here because of bug in pydicom
+        ds.file_meta.TransferSyntaxUID = pydicom.uid.ImplicitVRLittleEndian
+
+        # Reshape the data into a 1D array and convert to uint16
+        data_1d = data.ravel().astype(np.uint16)
+        # Convert the data to bytes
+        data_bytes = data_1d.tobytes()
+        # Add the data to the DICOM file
+        ds.PixelData = data_bytes
+
+        ds.save_as(path)
+
+
     def save_PIL(self, path, data):
         """ Save data to a PIL file to the given path.

@@ -271,6 +328,8 @@ class DataSaver:
                         return self.save_h5(path, data)
                     elif path.endswith((".vol",".vgi")):
                         return self.save_vol(path, data)
+                    elif path.endswith((".dcm",".DCM")):
+                        return self.save_dicom(path, data)
                     elif path.endswith((".jpeg",".jpg", ".png")):
                         return self.save_PIL(path, data)
                     else:

qim3d/processing/__init__.py

+from .local_thickness_ import local_thickness
+from .structure_tensor_ import structure_tensor
 from .filters import *
-from .local_thickness import local_thickness
-from .structure_tensor import structure_tensor
 from .detection import *
+from .cc import get_3d_cc

qim3d/processing/detection.py

@@ -6,6 +6,9 @@ __all__ = ["Blob"]


 class Blob:
+    """
+    Extract blobs from a volume using Difference of Gaussian (DoG) method
+    """
     def __init__(
         self,
         background="dark",
@@ -19,6 +22,7 @@ class Blob:
     ):
         """
         Initialize the blob detection object
+
         Args:
             background: 'dark' if background is darker than the blobs, 'bright' if background is lighter than the blobs
             min_sigma: The minimum standard deviation for Gaussian kernel
@@ -43,10 +47,37 @@ class Blob:
     def detect(self, vol):
         """
         Detect blobs in the volume
+
         Args:
             vol: The volume to detect blobs in
+
         Returns:
             blobs: The blobs found in the volume as (p, r, c, radius)
+
+        Example:
+            ```python
+            import qim3d
+
+            # Get data
+            vol = qim3d.examples.cement_128x128x128
+            vol_blurred = qim3d.processing.gaussian(vol, sigma=2)
+
+            # Initialize Blob detector
+            blob_detector = qim3d.processing.Blob(
+                min_sigma=1,
+                max_sigma=8,
+                threshold=0.001,
+                overlap=0.1,
+                background="bright"
+                )
+
+            # Detect blobs
+            blobs = blob_detector.detect(vol_blurred)
+
+            # Visualize results
+            qim3d.viz.circles(blobs,vol,alpha=0.8,color='blue')
+            ```
+            ![blob detection](assets/screenshots/blob_detection.gif)
         """
         self.vol_shape = vol.shape
         if self.background == "bright":
@@ -70,8 +101,32 @@ class Blob:
     def get_mask(self):
         '''
         Retrieve a binary volume with the blobs marked as True
+
         Returns:
             binary_volume: A binary volume with the blobs marked as True
+
+        Example:
+            ```python
+            import qim3d
+
+            # Get data
+            vol = qim3d.examples.cement_128x128x128
+            vol_blurred = qim3d.processing.gaussian(vol, sigma=2)
+
+            # Initialize Blob detector
+            blob_detector = qim3d.processing.Blob(
+                min_sigma=1,
+                max_sigma=8,
+                threshold=0.001,
+                overlap=0.1,
+                background="bright"
+                )
+
+            # Get mask and visualize
+            mask = blob_detector.get_mask()
+            qim3d.viz.slicer(mask)
+            ```
+            ![blob detection](assets/screenshots/blob_get_mask.gif)
         '''
         binary_volume = np.zeros(self.vol_shape, dtype=bool)


qim3d/processing/filters.py

@@ -87,6 +87,37 @@ class Minimum(FilterBase):


 class Pipeline:
+    """
+    Example:
+        ```python
+        import qim3d
+        from qim3d.processing import Pipeline, Median, Gaussian, Maximum, Minimum
+
+        # Get data
+        vol = qim3d.examples.fly_150x256x256
+
+        # Show original
+        qim3d.viz.slices(vol, axis=0, show=True)
+
+        # Create filter pipeline
+        pipeline = Pipeline(
+            Median(size=5),
+            Gaussian(sigma=3)
+        )
+
+        # Append a third filter to the pipeline
+        pipeline.append(Maximum(size=3))
+
+        # Apply filter pipeline
+        vol_filtered = pipeline(vol)
+
+        # Show filtered
+        qim3d.viz.slices(vol_filtered, axis=0)
+        ```
+        ![original volume](assets/screenshots/filter_original.png)
+        ![filtered volume](assets/screenshots/filter_processed.png)
+
+        """
     def __init__(self, *args: Type[FilterBase]):
         """
         Represents a sequence of image filters.
@@ -125,6 +156,20 @@ class Pipeline:

         Args:
             fn: An instance of a FilterBase subclass to be appended.
+
+        Example:
+            ```python
+            import qim3d
+            from qim3d.processing import Pipeline, Maximum, Median
+
+            # Create filter pipeline
+            pipeline = Pipeline(
+                Maximum(size=3)
+            )
+
+            # Append a second filter to the pipeline
+            pipeline.append(Median(size=5))
+            ```
         """
         self._add_filter(str(len(self.filters)), fn)


qim3d/processing/local_thickness.py → qim3d/processing/local_thickness_.py

@@ -15,7 +15,7 @@ def local_thickness(
     visualize=False,
     **viz_kwargs
 ) -> np.ndarray:
-    """Wrapper for the local thickness function from the localthickness package (https://github.com/vedranaa/local-thickness)
+    """Wrapper for the local thickness function from the [local thickness package](https://github.com/vedranaa/local-thickness)

     Args:
         image (np.ndarray): 2D or 3D NumPy array representing the image/volume.
@@ -26,11 +26,27 @@ def local_thickness(
         mask (np.ndarray, optional): binary mask of the same size of the image defining parts of the
             image to be included in the computation of the local thickness. Default is None.
         visualize (bool, optional): Whether to visualize the local thickness. Default is False.
-        **viz_kwargs: Additional keyword arguments for the visualization function. Only used if visualize=True.
+        **viz_kwargs: Additional keyword arguments passed to `qim3d.viz.local_thickness`. Only used if `visualize=True`.

     Returns:
         local_thickness (np.ndarray): 2D or 3D NumPy array representing the local thickness of the input image/volume.

+    Example:
+        ```python
+        import qim3d
+
+        fly = qim3d.examples.fly_150x256x256 # 3D volume
+        lt_fly = qim3d.processing.local_thickness(fly, visualize=True, axis=0)
+        ```
+        ![local thickness 3d](assets/screenshots/local_thickness_3d.gif)
+
+        ```python
+        import qim3d
+
+        blobs = qim3d.examples.blobs_256x256 # 2D image
+        lt_blobs = qim3d.processing.local_thickness(blobs, visualize=True)
+        ```
+        ![local thickness 2d](assets/screenshots/local_thickness_2d.png)

     !!! quote "Reference"
         Dahl, V. A., & Dahl, A. B. (2023, June). Fast Local Thickness. 2023 IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops (CVPRW).
